Product Details:
Payment & Shipping Terms:
|
| Name: | Frame Tubing 1" By 16ga Thick Middle Brace 3/4" Canada Rental Temporary Construction Fence | Panel: | 6x9.5ft, 6x10ft, 8x9.5ft, 8x10ft |
|---|---|---|---|
| Guage: | 8ga. 9ga, 10ga. | Pipe: | 20x20mm,25x25mm,30x30mm |
| Mesh: | 50x100,50x150mm Etc. | Wire Diameter: | 3.0mm,3.5mm,4.0mm |
| Material: | Steel Wire And Pipe | Accessory: | Top Clip, Feet |
| Color: | Silver, Red, Green, Blue Etc | Height: | 4ft,6ft,8ft |
| Length: | 8ft,9.5ft,10ft | Surface Finish: | Galvanized, Pvc Coated, Powder Coated |
| Usage: | Fencing, Rental, Security | ||
| Highlight: | 50x100 temporary fencing construction,galvanized temporary fencing construction,16ga temporary fence for construction site |
||

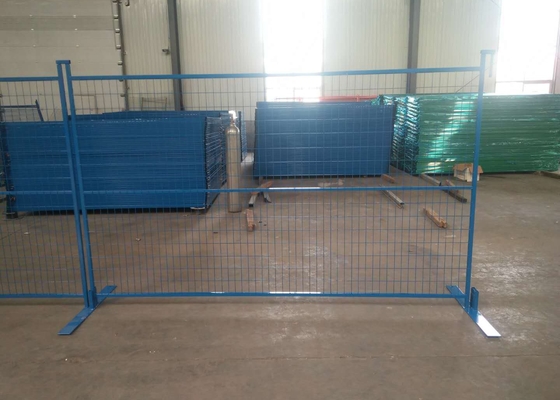

Frame Tubing 1" By 16ga Thick Middle Brace 3/4" Canada Rental Temporary Construction Fence
Temporary construction fence introduction
Material: Carbon steel wire.
Surface treatments: Hot-dipped galvanized, electric galvanized & elec galvanized then PVC.
Applications: Secure construction sites, private property, major public events, sports, concerts, festivals & gatherings, etc.
Main Market: Canada, USA, and so on.
Temporary construction fence specification
| Panel Specification | |
| Available Dimensions (H × W) |
6' × 9.5' (equal to 1.8 × 2.9 m) 8' × 9.5' (equal to 2.4 × 2.9 m) 8.2' × 8' (equal to 2.5 × 2.4 m) 8.2' × 9.5' (equal to 2.6 × 2.4 m) 6.2' × 8' (equal to 1.9 × 2.4 m), etc. |
| Wire diameter | 4.0, 6.0 mm optional. |
| Mesh opening | 50 × 100, 50 × 150, 75 × 150 mm optional. |
| Frame O.D. × TH | 30 × 30 × 2, 40 × 40 × 2 mm optional. |
| Frame TH | 2.0–2.5 mm. |
| Middle horizontal pipe O.D. | 25 × 25 × 2 mm. |
| Surface treatment |
Electric galvanized before powder coated. Hot dipped galvanized after welding. |
| Color | Dark green, yellow, red, blue, other RAL colors. |
| Fence feet Specification | |
| Material | Steel plate, steel solid rod, steel pipe. |
| Dimensions (H × W × TH) |
600 × 110 × 8, 900 × 80 × 7 mm optional. |
| Hole size O.D. | 19 mm. |
| Interior round steel rod/pipe | 30 mm O.D. × 150 mm H. |
| Exterior square steel rod/pipe | 30 × 30 × 150 mm. |
| Rod space | 30 mm. |
| Surface treatment | Electric galvanized before powder coated. |
| Top Clips Specification | |
| Material | Steel plate, steel solid rod, steel pipe. |
| Coupler top plate/pipe | 110 × 40 × 8 mm. |
| Left round steel rod/pipe | 30 mm O.D. × 150 mm H. |
| Right square steel rod/pipe | 30 × 30 × 150 mm H. |
| Surface treatment | Electric galvanized before powder coated. |
| Clamp Specification | |
| Clamp center distance | 80, 90, 100 mm optional. |
| Applied post O.D. | 25, 28, 32, 38, 40, 42 mm optional. |
| Clamp TH | 4 mm. |
| Bolt | Length available 100/60/40 mm with a 10 mm and 8 mm outer diameter. |
| Nut | 15.9 mm, 17 mm optional. |
| Surface Treatment | Hot dipped galvanized. |
| Weight | 0.42 kg/set. |
| Accessory List | 2 pieces clamps with 1 bolt and 1 nut. |
Temporary metal fencing accessories
STEEL BASE
No need to dig holes or lay foundations. Only need to place the base on a flat surface. If necessary, there are two 19 mm diameter pin holes to peg the footing on the ground when the install completes.
Adapt cement or asphalt areas. With good regional adaptability, the ground is not required to be absolutely flat, nor cement or asphalt areas.
Stable enough. Technical staff will give reliable advice on platy fencing feet size according to the panel dimensions.
Three different styles are available. We provide flowing three types of base connector clips for your standard and special demand.
A special fencing coupler which is popular in Canada and North America, it gives a secure clamp to the CA temporary fencing. In addition, it provides a flexible isolation angle for the requirement of rapid re-configuration of the construction area.
Temporary metal fencing Features:
With many available high-visibility colors to choose from.
Anchored to sturdy metal bases, connected at the top by metal clips. temporary fencing systems can quickly and easily be installed, without the need to disturb the surface area by digging holes or laying foundations.
