Product Details:
Payment & Shipping Terms:
|
| Name: | Heavy Duty Cattle Panel | Pipe Style: | Round,square,oval |
|---|---|---|---|
| Color: | Silver | Frame Finishing: | Powder Coated,Hot Dipped Galvanized |
| Ovail Tube: | 60x30mm,40x80mm,45x115mm Etc | Rails: | 5/6 Rails |
| Panel: | 2.1x1.8m,1.6x2.1m | Round Tube: | 32mmOD,42mmOD Etc |
| Usage: | Farm Fence | Thickness: | 1.6mm/2.0mm Etc |
| Metal Type: | Steel, Metal | Connection: | Bolt Pins With Nuts |
| Applications: | Arm,yard.house,sheep Yard,Agriculture Field | Square Tube: | 40mm,50mm, |
| Highlight: | 7ft wide metal cattle fence panels,corrosion resistant metal cattle fence panels,7ft wide portable cattle fencing |
||

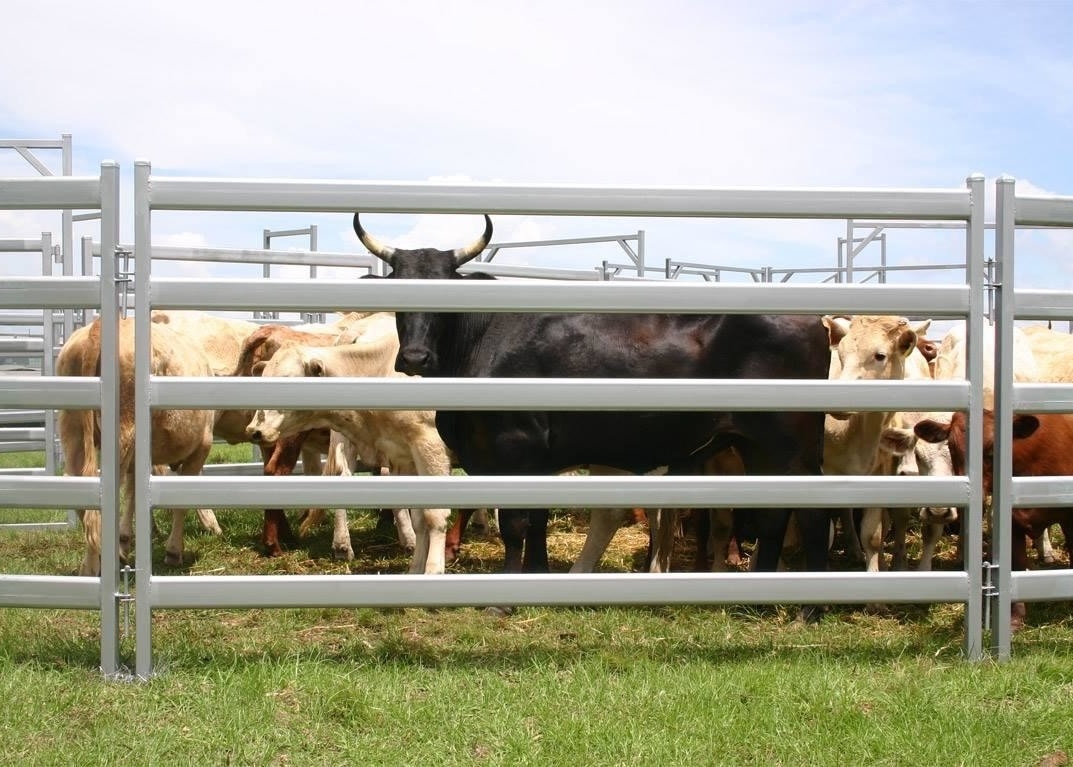

Heavy Duty Cattle Panel Introduction
Cattle yard panel is usually called cattle panel, horse panel,livestock panel,corral panel etc.
It is made with welded hot dip galvanized pipes for the use of fencing livestocks, such as cattle,cow,bull,calves,Dairy sheep,goat,dog.
Jiangrui supply quality cattle panels, horse panels, sheep panels and custom made panels suitable for all livestock.
All products are manufactured using high quality pre-galvanised RHS & pipe.
A versatile cattle panel with rounded edges that can be used as a cattle panel, horse panel or sheep panel.
Extra C and L lugs can be supplied to integrate panels into an existing yard.
Call me for a no-obligation chat about how I can help out.
For further information please contact AOBIAO Manufacturing
Heavy Duty Cattle Panel Specification
1>round style
| material | pre hot dipped galvanized steel pipe |
| finishing(zinc coating) | more than 15 microns |
| Height x Length | 1800mm x 2100mm |
| vertical pipe |
32mm O.D x1.6mm thickness 42mm O.D x 1.6 mm thickness |
| horizontal rails |
32mm O.D x1.6mm thickness 42mm O.D X 1.6mm thickness (6 round rails) |
| Welding | Fully welded post brackets |
| welds | bull bars are fully welded, each weld is protected with epoxy paint |
2>square tube style
| material | pre hot dipped galvanized steel pipe |
| finishing(zinc coating) | mor than 15 microns |
| HeightxLength | 1800mm x 2100mm |
| vertical pipe |
50 x 50mm RHS x 1.6mm thickness 40 x 40mm RHS x 1.6mm thickness |
| horizontal rails |
50 x 50mm RHS x 1.6mm thickness 40 x 40mm RHS x 1.6mm thickness (6 square rails) |
| Welding | Fully welded post brackets |
| welds | bull bars are fully welded, each weld is protected with epoxy paint |
3> oval tube style
| material | pre hot dipped galvanized steel pipe |
| finishing(zinc coating) | mor than 15 microns |
| HeightxLength | 1800mm x 2100mm |
| vertical pipe |
50 x 50mm RHS x 1.6mm thickness 40 x 40mm RHS x 1.6mm thickness |
| horizontal rails |
30x60mm oval rail x 1.6mm thickness 40x80mm oval rail x 1.6mm thickness 40x120mm oval rail x 1.6mm thickness (6 oval rails) |
| Welding | Fully welded post brackets |
| welds | bull bars are fully welded, each weld is protected with epoxy paint |
4>cattle panel gate
| Height x Length: | 2200mm x 2000mm |
| Frame: |
Horizontal & Vertical pipe: 50 mm x 50 mm RHS x 1.8 mm thick with fully welded caps |
| Cattle Gate Horizontal rail: | 40 mm x 80 mm x 1.6mm thick x 6 oval rails |
| Finishing: |
hot dipped galvanized ,zinc coating:more than 15 microns. Fully welded oval pipes, post &brackets ,heavy duty hinges |
Heavy Duty Cattle Panel Uses & Type
Heavy Duty Cattle Panel Packing&Shipping
Packing
(1)pallet
(2)in bulk
(3) container
Shipping
(1) Factory directly sale.
(2) It can customized according to the requirements or drawings.
(3)With the fastest speed of delivery
(4)Answer questions in a timely
(5)Enquiry will be replied in 2 hours.
(6)If you have any question,please tell me freely.
1) What's your advantage?
We are manufacture. Honest business with competitive price and professional service on export process.
2) What is your minimum order requirement?
According the different product. We can discuss details.
3) How I believe you?
We consider honest as the life of our company. There is trade assurance from Alibaba, your order and money will be well guaranteed.
4) Can you supply sample for me to check?
Yes, we will provide sample for free.
5) How can I know how my order is being done?
We will inspect and test all items in order to avoid damage and missing parts before shipping.
